PORTABLE 3D SCANNING SYSTEM

Translate any physical object into an accurate 3D digital scan that can be perfectly replicated or enlarged with this portable scanning system.

FROGSCAN™ FLASH - PEEL 3

BY

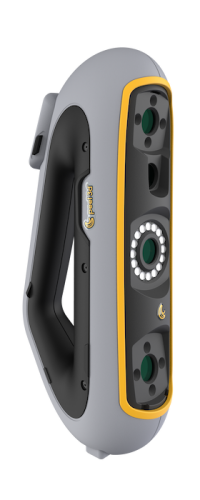

peel3-productimage

Specifications

Metric Standard
Part Size Range (Reccomended) 0.3 m – 3.0 m 1ft – 10 ft
Accuracy Up tp 0.250 mm 0.01 in
Mesh Resolution 0.500 mm 0.020 in
Measurment Resolution 0.250 mm 0.010 in
Measurment Rate 550,000 measurments/sec.
Volumetric Accuracy 0.500 mm/m 0.006 in/ft
Scanning Area (Single Capture) 380 mm x 380 mm 15 x 15 in
Stand-Off Distance 400 mm 15.75 in
Depth of Field 250 mm 10 in
Light of Source White Light (LED)
Colors 24 bits
Texture Resolution 50 to 150 DPI
Positioning Method Geometry and/or targets and/or texture
Colors 24 bits
Weight 950 g 2.1 lb
Dimensions 150 x 171 x 251 mm 5.9 x 6.7 x 9.9”
Connection Standard 1 x USB 2.0
Output Format .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Certifications EC Compliance, IP50, WEEE

Key Features

Using advanced white light technology, FROGScan™ Flash - Peel 3 is able to capture a digital 3D scan in seconds and in color. It is offered as a standalone, portable solution that can be easily transported and set-up when and where required.

Once complete, the scanned file can be edited and prepared for production using FROGWare™ software, and then passed to FROGMill™ for accurate replication or enlargement. Let FROGScan™ Flash - Peel 3 expand your capabilities and grow your product line!

Fast Scanning Speed

FROGScan™ Flash -Peel 3 uses white light technology that captures objects in matter of seconds.

Amazing Portability

FROGScan™ Flash – Peel 3 handheld 3D scanner is a standalone system that can easily be transported to wherever it’s needed.

Quality and Accuracy

FROGScan™ Flash – Peel 3 can generate scans with up to 100-micron accuracy and it is built to withstand heavy use in an industrial environment. It allows for seamless capture of high-quality geometry and colors simultaneously.

Integrated Software

In addition to its powerful 3D data acquisition capabilities, FROGScan™ Flash – Peel 3 includes 3D scanning software offering post-processing capabilities like scan alignment and merging.

Dynamic Referencing

FROGScan™ Flash – Peel 3 automatically aligns and realigns 3D scan data using self-positioning technology. Pause and resume scans with no issues while FROGScan™ Flash – Peel 3 automatically finds its last scanned area.

Point and Shoot

Learn to use FROGScan™ Flash – Peel 3 in under 2 minutes with its point and shoot technology.

End-to-End Automation

FROGScan™ Flash – Peel 3 has been designed to work seamlessly with other FROG3D® components, eliminating the hassles that come with non-integrated components.

Comprehensive Training and Support

FROG3D® products are backed with second-to-none training programs and technical support to get you up and running quickly.
